ROCK's aluminum spacers are the first choice for glass insulation due to their continuous production using the latest roll-forming and high frequency induction welding equipment.

To meet the needs of various markets, aluminum spacers are available in various dimensions for insulating glass production.

Aluminum spacers are suitable for cut-and-plug applications with plastic corner connectors and for machine bending with metallic straight connectors.

The thickness of the aluminum materials varies from 0.18 mm for lower thermal conductivity and cost efficiency to 0.35 mm for bendability and strength.

Aluminum spacers are available in different sizes, with a nominal width of 4 mm to 40 mm. The standard length of aluminum spacers is 5 meters, although other lengths are optional upon request.

In addition, if required, ROCK can produce colored spacers in many colors using powder coating technology.

Characteristics:

• Rust and corrosion resistance
• Good straightness and no deformation
• Smooth welding line
• High-purity aluminum alloy

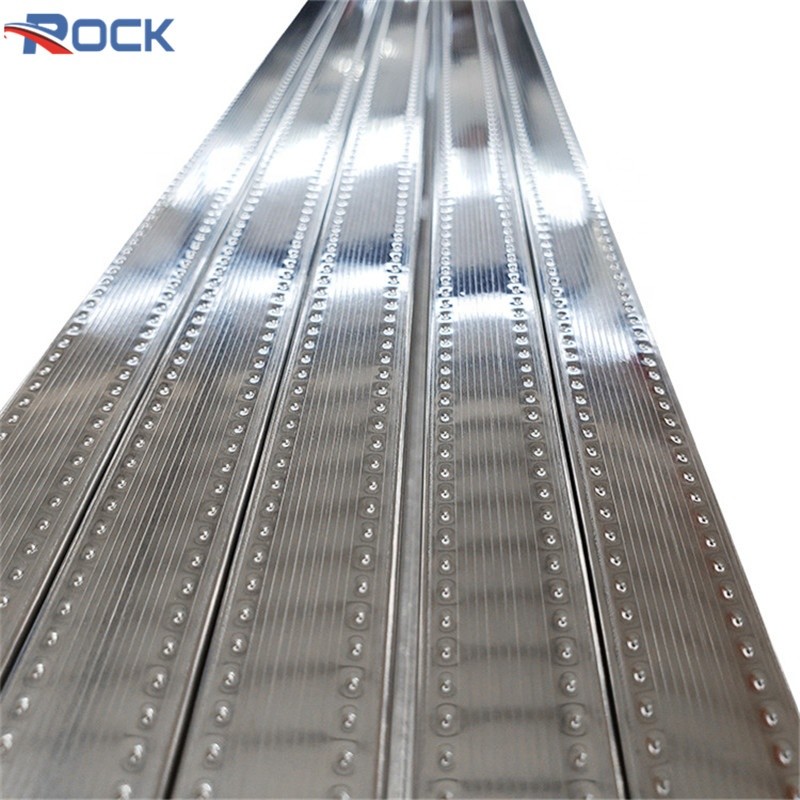

• Good hole penetration and double row perforation to maintain molecular sieve and ensure moisture absorption
• Shining surface with no scratches

Storage:

• In a dry, ventilated area, 15cm away from the ground
• Not directly exposed to sunlight

Packaging:

• 5M and 6M standard cartons, wooden or iron packaging

Size: 4A–40A

Specification
